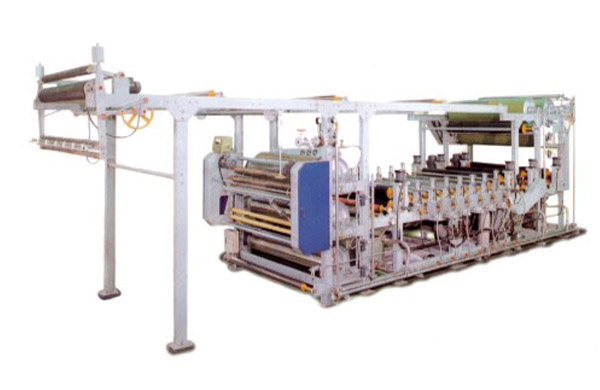

磨毛机系列
此机型的磨毛机除了乾式操作，并且可以转戍濕式操作。
The sueding is not only for treatment dry sueding process,but also for wet sueding treatment.
| 技术参数 TECHNICAL PARAMETERS | |
| 本机特性 | CHARACTERISTICS |
| ○中心校正器 | ○Fabrics centering device |
| ○三支烫平輪装置 | ○3pcs-drying rollers |
| ○加温上濕槽 | ○The dipping trough with constant temperature&Squeezer mangle in wet |
| ○高精密磨毛輪 | ○High precise sueding rollers |
| ○磨毛輪釆用變频器控制 | ○Sueding roller control by inverter |
| ○磨毛輪可單獨調整轉速舆轉向 | ○The sueding roller revolves backward or forward |
| ○张力控制系统 | ○Tension control system |
| ○氣動壓布輪装置 | ○Pneumatic control on pressing rollers |
| ○壓布輪深淺顯示表 | ○The Up/Down motion of the pressing roller is adjusted by display |
| ○三支烘乾輪 | ○3pcs pre-drying rollers |
| ○出布擺布装置 | ○Outlet plaiting device |
| ○静電消除器 | ○Electrostatic Remover |
| 规格说明 SPECI FICA TION | ||
| 机型Model | LS6 | WSL |
| 磨毛輪数 Sueding Roller | 6pcs | 5-9pcs(optional) |
| 羅拉宽度 Roller Width | 2100mm | 2100mm |
| 工作宽度 Working Width | 2000mm | 2000mm |
| 机台马力 Power | 55HP | 38HP|55HP |
| 机械速度 Machine Speed | 6-60M/Min | 6-60M/Min |
| 吸塵風車 Suction Air Fan | 20HP | 20HP |
| 氣壓来源 Compressed Air | 5kg/cm2,￠１/2 | 5kg/cm２,￠１/2 |
| 蒸汽来源 Steam | 4kg/cm２,￠１/2 | |
